產品主要技術參數：
|

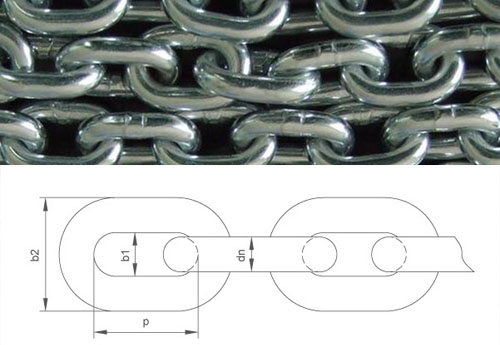

規格 直徑×內長 |
寬度 |
極限工作載荷 KN |
試驗負荷 KN |
破斷負荷 KN |
單位長度約重Kg/m |
|
|
|
最小內寬 |
最大外寬 |
|
|
|
|
|
Φ6×18 |
7.50 |
21.00 |
11.00 |
27.00 |
45.20 |
0.79 |
|
Φ7×21 |
9.00 |
24.50 |
15.00 |
37.00 |
61.60 |
1.07 |
|
Φ8×24 |
10.00 |
28.00 |
20.00 |
48.00 |
80.40 |
1.38 |
|
Φ10×30 |
12.50 |
35.00 |
32.00 |
76.00 |
125.00 |
2.20 |
|
Φ11×43 |
12.60 |
36.50 |
38.00 |
92.00 |
154.00 |
2.33 |
|
Φ12×36 |
15.00 |
42.00 |
46.00 |
109.00 |
181.00 |
3.10 |
|
Φ13×39 |
16.30 |
46.00 |
50.00 |
128.00 |
214.00 |
3.80 |
|
Φ14×42 |
18.00 |
49.00 |
63.00 |
150.00 |
250.00 |
4.13 |
|
Φ14×50 |
17.00 |
48.00 |
63.00 |
150.00 |
250.00 |
4.00 |
|
Φ15×46 |
20.00 |
52.00 |
70.00 |
168.00 |
280.00 |
5.17 |
|
Φ16×48 |
20.00 |
56.00 |
80.00 |
192.00 |
320.00 |
5.63 |
|
Φ16×49 |
24.50 |
59.50 |
80.00 |
192.00 |
320.00 |
5.71 |
|
Φ16×64 |
23.90 |
58.90 |
80.00 |
192.00 |
320.00 |
2.11 |
|
Φ18×54 |
23.00 |
63.00 |
100.00 |
246.00 |
410.00 |
6.85 |
|
Φ18×64 |
21.00 |
60.00 |
100.00 |
246.00 |
410.00 |
6.60 |
|
Φ19×57 |
23.70 |
63.20 |
113.00 |
270.00 |
450.00 |
7.70 |
|
Φ20×60 |
25.00 |
70.00 |
125.00 |
300.00 |
500.00 |
8.60 |
|
Φ22×65 |
28.00 |
74.20 |
153.00 |
366.00 |
610.00 |
10.70 |
|
Φ22×66 |
28.00 |
77.00 |
153.00 |
366.00 |
610.00 |
10.20 |
|
Φ22×86 |
26.00 |
74.00 |
153.00 |
366.00 |
610.00 |
9.50 |
|
Φ24×72 |
32.00 |
82.00 |
180.00 |
432.00 |
720.00 |
12.78 |
|
Φ24×86 |
28.00 |
79.00 |
180.00 |
432.00 |
720.00 |
11.60 |
|
Φ26×78 |
35.00 |
91.00 |
213.00 |
510.00 |
850.00 |
14.87 |
|
Φ26×92 |
30.00 |
86.00 |
213.00 |
510.00 |
850.00 |
13.70 |
|
Φ30×90 |
38.00 |
105.00 |
283.00 |
678.00 |
1130.00 |
19.60 |
|
Φ30×108 |
34.00 |
98.00 |
283.00 |
678.00 |
1130.00 |
18.00 |
|
Φ32×96 |
40.00 |
106.00 |
322.00 |
772.00 |
1286.00 |
22.29 |
|
Φ34×126 |
38.00 |
109.00 |
363.00 |
870.00 |
1450.00 |
22.70 |
|
Φ34×102 |
46.50 |
121.50 |
363.00 |
870.00 |
1450.00 |
25.50 |
|
Φ36×108 |
49.50 |
128.50 |
407.00 |
978.00 |
1630.00 |
31.00 |
|
Φ38×137 |
42.00 |
121.00 |
453.00 |
1086.00 |
1810.00 |
29.00 |
|
Φ38×114 |
52.00 |
136.00 |
453.00 |
1086.00 |
1810.00 |
32.00 |
|
Φ42×126 |
55.50 |
144.50 |
554.00 |
1332.00 |
2200.00 |
38.60 |
